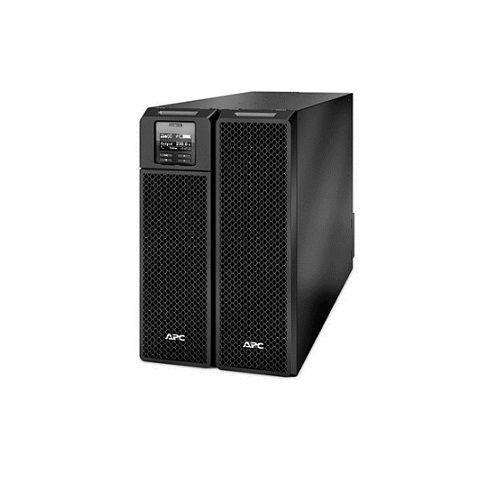

APC APC Smart-UPS SRT 8000VA 208V LCD rackmount w/kit – SRT8KXLT

SRT8KXLT Features Run time for load 5m 10s Max. Capacity Used 100% Output power capacity 8.0kWatts / 8.0kVA Output Connections (4) NEMA L6-20R (Battery Backup) (2) NEMA L6-30R (Battery Backup) Nominal Output Voltage 208V Nominal Input Voltage 208V Input Connections Hard wire 3-wire (2P E) APC Smart-UPS SRT 8000VA, 208V, LCD, rackmount w/kit High density, double-conversion on-line power protection with scalable runtime. Includes: CD with software, Documentation CD, Installation guide, Temperature probe, USB cable, Warranty card, Web/SNMP management card Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms. Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment. Smart-UPS On-Line Features & Benefits Adaptability Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment. Flash upgradeable firmware Install maintenance releases of firmware remotely using FTP. Plug-and-Play external batteries Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS. Availability Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power. Scalable runtime Allows additional run time to be quickly added as needed. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS power overload or fault. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Manageability InfraStruXure Manager Compatible Enables centralized management via the APC InfraStruXure Manager. Intelligent Card Slot Customize UPS capabilities with management cards. Serial connectivity Provides management of the UPS via a serial port. LED status indicators Quickly understand unit and power status with visual indicators. Network manageable Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded. Marketing features Low operating and maintenance costs with proven reliability and intelligent battery management . Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Peace of mind that comes with full equipment compatibility and reliability of a leader Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. Avoids costly power problems by keeping your IT equipment and data protected and available . Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events. Save time with easy and convenient remote/network accessibility. Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities. Protection Generator compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling. Cold-start capable Provides temporary battery power when the utility power is out. Frequency and voltage regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances. Resettable circuit breaker Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs) Serviceability User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Disconnected battery notification Warns when a battery is not available to provide backup power. Audible alarms Provides notification of changing utility power and UPS power conditions Predictive failure notification. Provides early-warning fault analysis ensuring proactive component replacement. Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Detailed Tech Specification   Output Max Configurable Power (Watts) 8.0kWatts / 8.0kVA Output Voltage Distortion Less than 2 % Output Frequency (sync to mains) 50/60 Hz /- 3 Hz Sync to mains Other Output Voltages 240 V Load Crest Factor 3 : 1 Topology Double conversion online Waveform type Sine wave Bypass Internal bypass (automatic and manual) Input Input frequency 40 – 70 Hz Auto-sensing Input voltage range for main operations 100 – 275 Adjustable (half load)V Other Input Voltages 240 V Batteries & Runtime Battery type Lead-acid battery Typical recharge time 1.5hour(s) Nominal Battery Voltage /- 192 V (split battery referenced to neutral) Replacement Battery APCRBC140 Expected Battery Life (years) 3 – 5 RBC Quantity 2 Battery Charge Power (Watts) 1.136kWatts Extendable Run Time 1 Runtime View Runtime Graph Efficiency View Efficiency Graph Communications & Management Interface Port(s) RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB Control panel Multifunction LCD status and control console Audible Alarm Audible and visible alarms prioritized by severity Emergency Power Off (EPO) Yes Available SmartSlot™ Interface Quantity 1 Surge Protection and Filtering Surge energy rating 480Joules Physical Maximum Height 432MM, 43.2CM Maximum Width 263MM, 26.3CM Maximum Depth 715MM, 71.5CM Net Weight 111.58KG Shipping weight 126.55KG Shipping Height 461MM, 46.1CM Shipping Width 600MM, 60.0CM Shipping Depth 1000MM, 100.0CM Color Black Units per Pallet 1.0 Environmental Operating Temperature 0 – 40 °C Operating Relative Humidity 0 – 95 (Non-condensing) % Operating Elevation 0 – 3048meters Storage Temperature -15 – 45 °C Storage Relative Humidity 0 – 95 (Non-condensing) % Storage Elevation 0 – 15240meters Audible noise at 1 meter from surface of unit 55.0dBA Online thermal dissipation 1712.0BTU/hr Protection Class IP20 Conformance Approvals CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, NOM, UL 1778 Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery Sustainable Offer Status RoHS Compliant Proposition 65 Warning Available in Documentation tab
