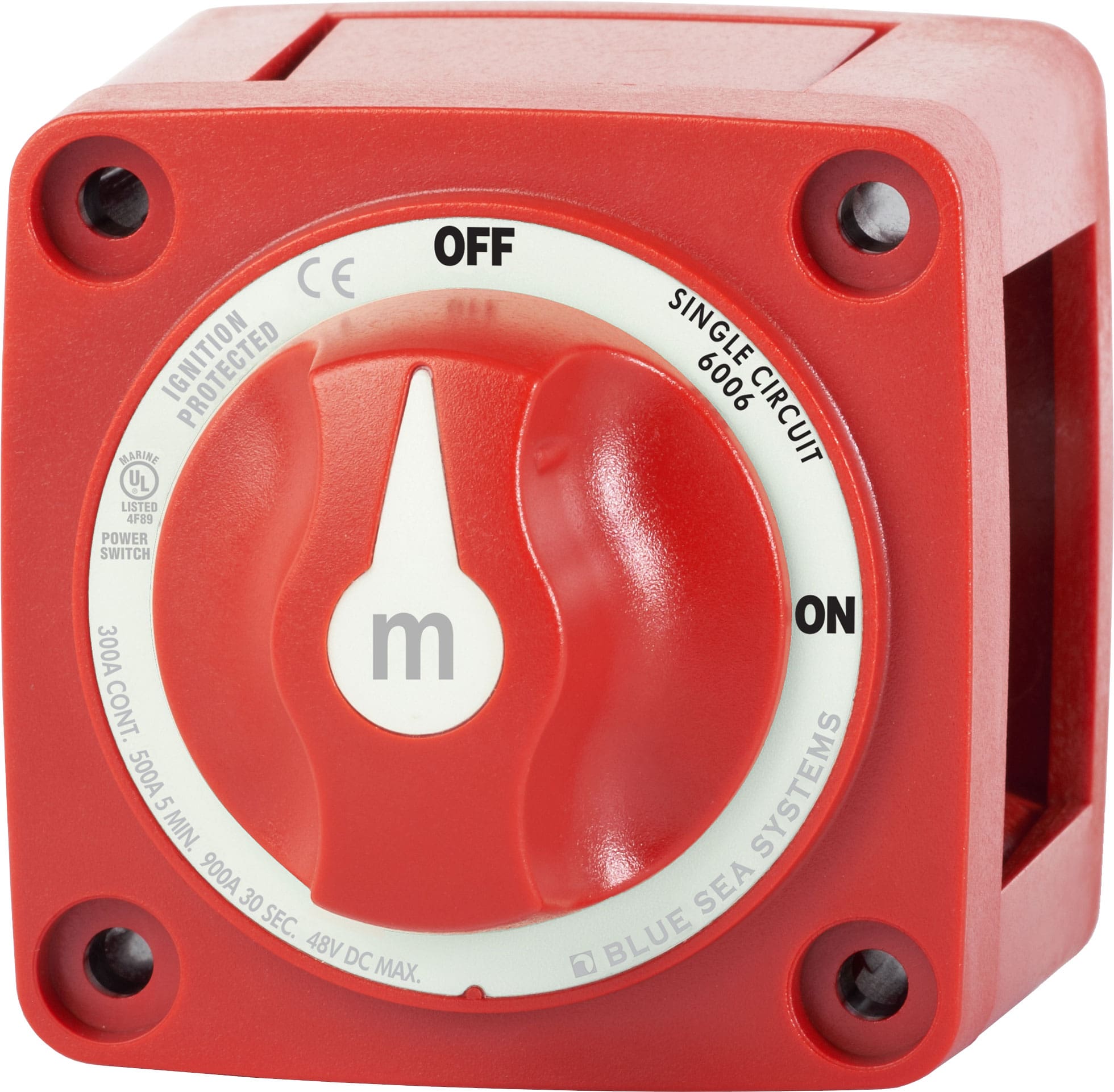

Blue Sea Battery Cutoff Switch

$25.19 $49.37
Single circuit 300 amps per circuit Blue Sea part number 6006. Specifications Switch Type Single Circuit Color Red Switch Positions 2 Battery Combine No Alternator Field Disconnect No Maximum Voltage 32V DC Stud Size 3/8″ Terminal Stud Torque 120 in-lb (13.56 Nm) Continuous Rating 300A Intermittent Rating 450A (5 min) Cranking Rating 30 sec 675A per circuit Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm) Cable Size to Meet Ratings 4/0 AWG (120mm²) Mounting Holes Accept #10 Screw Stud Material Tinned Copper Stud Torque 120 in-lb (13.56 Nm) Terminal Stud Size 3/8″ – 16 (M10) Weight 0.80Lb (0.36 Kg) Weight 0.80lb (0.36 kg) K4 Switches P/N K4-16-132
